For model TR-22, Regency (brand of I.D.E.A.):
tratta da ebay

Country:  United States of America (USA)
Manufacturer / Brand:  Regency (brand of I.D.E.A.)
alternative name

Idea (I.D.E.A.)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: AO-1 2N229 2N229 2N229
Main principle TRF with diode detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: TR-22 - Regency brand of I.D.E.A.
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5 x 3 x 1.25 inch / 127 x 76 x 32 mm
Notes See Bunis page 231.
Mentioned in The Collector's Guide To Antique Radios 2. Edition

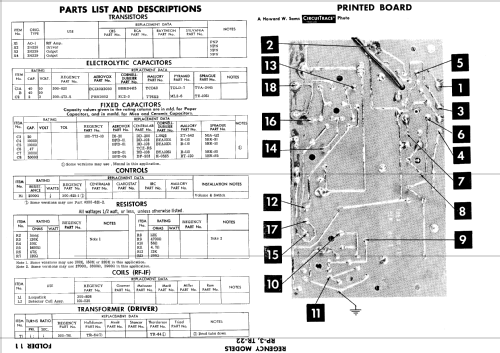

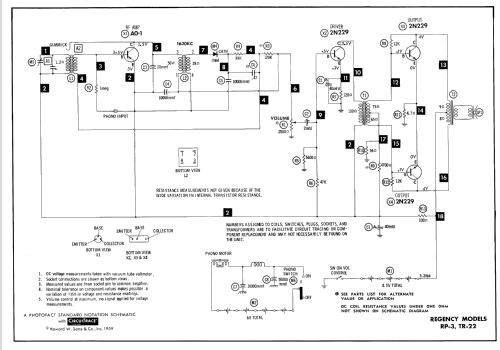

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 8-59, Set 453, Folder 11)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Regency (brand of I.D.E.A.)
Here you find 64 models, 54 with images and 29 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
