TR-7 TR7

TR-7 TR7; Regency brand of I.D (ID = 772787) Radio

TR-7 TR7; Regency brand of I.D (ID = 772788) Radio

TR-7 TR7; Regency brand of I.D (ID = 772789) Radio

TR-7 TR7; Regency brand of I.D (ID = 772790) Radio
TR-7 TR7; Regency brand of I.D (ID = 2218558) Radio TR-7 TR7; Regency brand of I.D (ID = 2218557) Radio

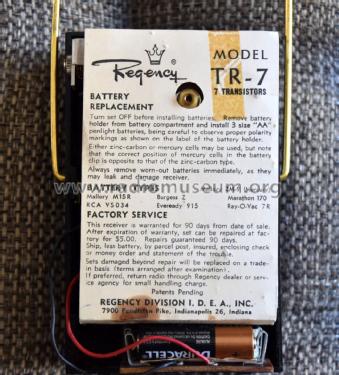

TR-7 TR7; Regency brand of I.D (ID = 2218559) Radio TR-7 TR7; Regency brand of I.D (ID = 2218556) Radio
TR-7 TR7; Regency brand of I.D (ID = 263259) Radio
Use red slider bar for more.
TR-7 TR7; Regency brand of I.D (ID = 2218558) Radio
Regency brand of I.D: TR-7 TR7 [Radio] ID = 2218558 1400x1546
Select picture or schematic to display from thumbnails on the right and click for download.
For model TR-7 TR7, Regency (brand of I.D.E.A.):
downloaded from ebay ..ebay.com/itm/Vintage-Regency-TR-7-Transistor-Radio-In-Very-Good-Working-Condition/273048325883?hash=item3f92f2cefb:g:9-AAAOSws0JacSfD

Country:  United States of America (USA)
Manufacturer / Brand:  Regency (brand of I.D.E.A.)
alternative name

Idea (I.D.E.A.)
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N229 2N229 2N229 2N229 2N229 2N229 2N229
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: TR-7 TR7 - Regency brand of I.D.E.A.
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.25 x 7.125 x 3.125 inch / 133 x 181 x 79 mm
Notes black or ivory, with swing handle.
Mentioned in The Collector's Guide To Antique Radios 2. Edition
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-58, Set 417, Folder 9)

Model page created by Ernst Erb. See "Data change" for further contributors.
