Minim BT18

Minim BT18; Regentone Products (ID = 721522) Radio

Minim BT18; Regentone Products (ID = 721523) Radio

Minim BT18; Regentone Products (ID = 1328407) Radio

Minim BT18; Regentone Products (ID = 1328408) Radio
Minim BT18; Regentone Products (ID = 1537353) Radio Minim BT18; Regentone Products (ID = 1537355) Radio
Minim BT18; Regentone Products (ID = 2125022) Radio
Use red slider bar for more.
Minim BT18; Regentone Products (ID = 1537353) Radio
Regentone Products: Minim BT18 [Radio] ID = 1537353 933x658
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minim BT18, Regentone Products Ltd.

Country:  Great Britain (UK)
Manufacturer / Brand:  Regentone Products Ltd.
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: OC44 OC45 OC45 OC81D OC81 OC81
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Minim BT18 - Regentone Products Ltd.
Material Modern plastics (no Bakelite or Catalin)
Notes Personal portable radio. Price £8. 18s. 6d. plus tax.
Price in first year of sale 9.00 GBP
Source of data -- Schematic

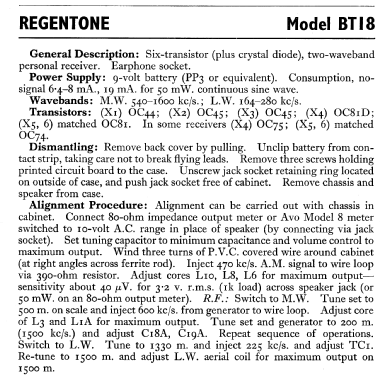

Literature/Schematics (1) Radio And Television Servicing books (R&TVS) (Trader Sheet 1582.)

Model page created by Keith Staines. See "Data change" for further contributors.
