Grid Leak´s Pocketphone DB/P

Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 367476) Radio
Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 367472) Radio Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 367473) Radio
Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711047) Radio Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711049) Radio
Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711051) Radio Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711054) Radio

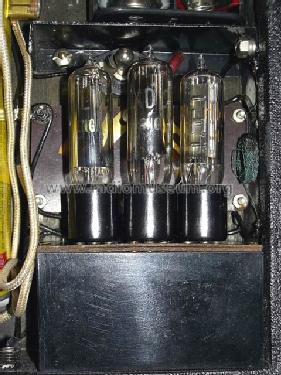

Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711056) Radio Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 711058) Radio
Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 2117205) Radio
Use red slider bar for more.
Grid Leak´s Pocketphone DB/P ; Reid A., London (ID = 367472) Radio
Reid A., London: Grid Leak´s Pocketphone DB/P [Radio] ID = 367472 532x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grid Leak´s Pocketphone DB/P, Reid A., London:
Scanned picture from magazine Radio-Express May 21st 1937

Country:  Great Britain (UK)
Manufacturer / Brand:  Reid A., London
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: XDmidget XDmidget XLmidget
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 30 & 2 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Grid Leak´s Pocketphone DB/P - Reid A., London
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7.25 x 1.75 x 5.5 inch / 184 x 44 x 140 mm
Notes For headphone use. Tubes are miniature triodes of brand HIVAC - Batteries: HT 30 Volts dry battery and LT 2v storage battery 3Ah.
Price in first year of sale 3.00 £
Source of data Radio! Radio!

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Reid A., London
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
