Minuet RX21

Minuet RX21; REMA, Fabrik für (ID = 2582821) Radio Minuet RX21; REMA, Fabrik für (ID = 447918) Radio
Minuet RX21; REMA, Fabrik für (ID = 380611) Radio Minuet RX21; REMA, Fabrik für (ID = 447923) Radio
Minuet RX21; REMA, Fabrik für (ID = 380608) Radio Minuet RX21; REMA, Fabrik für (ID = 380609) Radio
Minuet RX21; REMA, Fabrik für (ID = 447919) Radio Minuet RX21; REMA, Fabrik für (ID = 696622) Radio
Minuet RX21; REMA, Fabrik für (ID = 696624) Radio Minuet RX21; REMA, Fabrik für (ID = 696625) Radio
Use red slider bar for more.
Minuet RX21; REMA, Fabrik für (ID = 2582821) Radio
REMA, Fabrik für: Minuet RX21 [Radio] ID = 2582821 1400x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minuet RX21, REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     15 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Minuet RX21 - REMA, Fabrik für Rundfunk,
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 456 x 148 x 292 mm / 18 x 5.8 x 11.5 inch

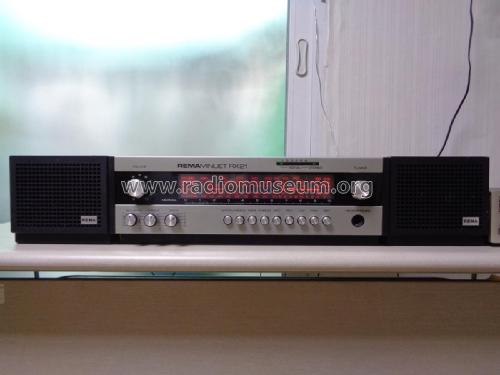

Notes Nachfolger des RX20. 4 ICs, 10 Dioden, 7 LED. MPX-Filter, Ausgangsleistung 2× 8 W Sinus. Zugehörige Einwege-Kompaktboxen B7135.
Price in first year of sale 1'140.00 DM
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Here you find 160 models, 133 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
