Solo 234

Solo 234; REMA, Fabrik für (ID = 827521) Radio Solo 234; REMA, Fabrik für (ID = 827522) Radio
Solo 234; REMA, Fabrik für (ID = 827523) Radio
Use red slider bar for more.

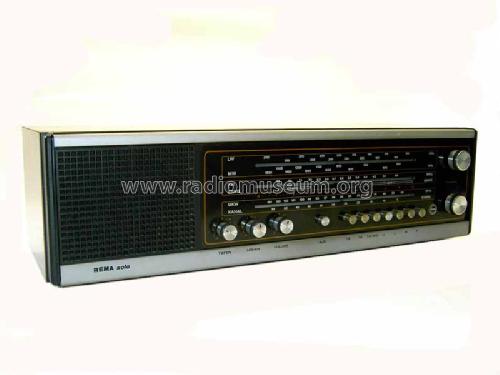

Solo 234; REMA, Fabrik für (ID = 827521) Radio
REMA, Fabrik für: Solo 234 [Radio] ID = 827521 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solo 234, REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)

Country:  Germany
Manufacturer / Brand:  REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: SF235 ГТ322 SFT322 МГТ108 МП20 GD170
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Solo 234 - REMA, Fabrik für Rundfunk,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 240 x 180 mm / 24 x 9.4 x 7.1 inch
Notes Halbleiter teilweise mehrfach vorhanden.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 620.00 Mark

Model page created by Jürgen Tiedmann. See "Data change" for further contributors.



All listed radios etc. from REMA, Fabrik für Rundfunk, Elektrotechnik und Mechanik, Stollberg (Ostd.)
Here you find 160 models, 133 with images and 120 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
