• Country
• Spain

• Manufacturer / Brand
• Remco S.A.; Llisa de Vall (Barcelona)

• Year
• 1969

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 198670

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 125; 160; 220 / 12 / D: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.6 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Magnetófono S-2002 - Remco S.A.; Llisa de Vall

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 160 x 120 mm / 9.3 x 6.3 x 4.7 inch

• Notes

• Velocidad 4,75 cm/s

  REMCO fabricó este modelo para ELBE, ver 009

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

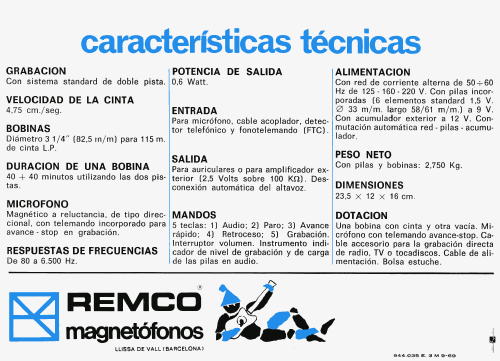

• Literature/Schematics (1)
• Anuncio La Vanguardia Española noviembre 1969

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
