J52
Use red slider bar for more.
AMO A.M.O, Renard et: J52 [Radio] ID = 653036 933x575
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
AMO (A.M.O.) | ||||
|---|---|---|---|---|---|
| Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6E8G or 6TH8 6K7 6Q7 6V6G 5Y3GB |
| Main principle | Superheterodyne (common); ZF/IF 472 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch |
| Power out | 4.5 W (unknown quality) |
| from Radiomuseum.org | Model: J52 - AMO A.M.O, Renard et Moiroux; |

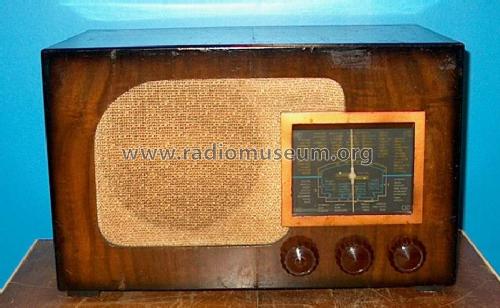

| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 450 x 270 x 260 mm / 17.7 x 10.6 x 10.2 inch |
| Notes | 3 gammes d'ondes : OC 18.5 à 53 m, PO 197 à 563 m, et GO de 750 à 2000 m. Anti-fading. Prise pick-up commutée (à débrancher pour les auditions radio). Lampes cadran : 2 x 7 V / 0.3 A. Existe comme modèle spécial pour 25 périodes. |
| Net weight (2.2 lb = 1 kg) | 12 kg / 26 lb 6.9 oz (26.432 lb) |
| External source of data | Serge Laffont/Martin Renoth |
| Circuit diagram reference | La Documentation du Revendeur - Radio |
| Literature/Schematics (1) | Schémathèque Toute la Radio (STR) (No. 374) |
