Osciloscopio 3502
Retex S.A.; Hospitalet de LLobregat
- Country
- Spain
- Manufacturer / Brand
- Retex S.A.; Hospitalet de LLobregat
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 250023

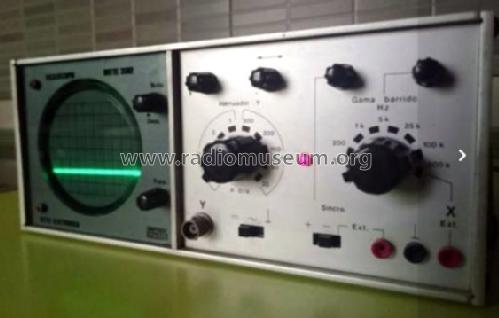

Image taken from internet.
Image taken from internet.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 127-220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Osciloscopio 3502 - Retex S.A.; Hospitalet de
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 220 x 110 x 275 mm / 8.7 x 4.3 x 10.8 inch
- Notes
-
Banda pasante, CC 8Mhz a 15Mhz.
Entradas con FET a 1 megohmio, 20mV a 20V/dividido en 10 posiciones.
Barrido recurrente 10Hz a 500kHz.
Sincronismo (+-) y exterior, sincroniza hasta 15Mhz.
TRC de frente plano y 75 mm. de diámetro.
- Net weight (2.2 lb = 1 kg)
- 3.4 kg / 7 lb 7.8 oz (7.489 lb)
- Mentioned in
- revista Electrónica Popular
