Bambinetta

Bambinetta ; Rex-Plastic, Max (ID = 363648) Radio
Bambinetta ; Rex-Plastic, Max (ID = 408574) Radio Bambinetta ; Rex-Plastic, Max (ID = 216303) Radio
Bambinetta ; Rex-Plastic, Max (ID = 216304) Radio Bambinetta ; Rex-Plastic, Max (ID = 216305) Radio
Bambinetta ; Rex-Plastic, Max (ID = 188746) Radio Bambinetta ; Rex-Plastic, Max (ID = 1747443) Radio
Bambinetta ; Rex-Plastic, Max (ID = 1747444) Radio
Use red slider bar for more.
Bambinetta ; Rex-Plastic, Max (ID = 408574) Radio
Rex-Plastic, Max: Bambinetta [Radio] ID = 408574 861x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bambinetta, Rex-Plastic, Max Ernst KG.; Nürnberg

Country:  Germany
Manufacturer / Brand:  Rex-Plastic, Max Ernst KG.; Nürnberg
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: GFT44 or. 37T1 GFT44 or. 37T1 GFT22 or. 965T1 GFT22 or. 965T1 K5/6
Main principle Superheterodyne (common); 3 AF stage(s); Reflex
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Bambinetta - Rex-Plastic, Max Ernst KG.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 95 x 75 mm / 5.3 x 3.7 x 3 inch
Notes

Transistoren: 2× GFT44/15, GFT22/6, GFT22/15 (oder vergleichbare von Thomson, F).

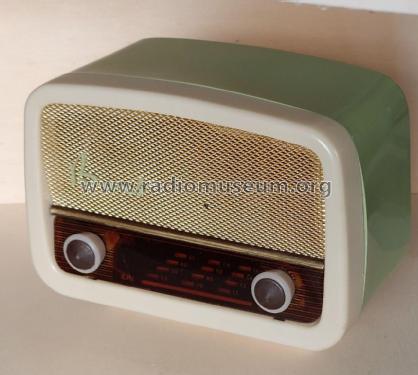

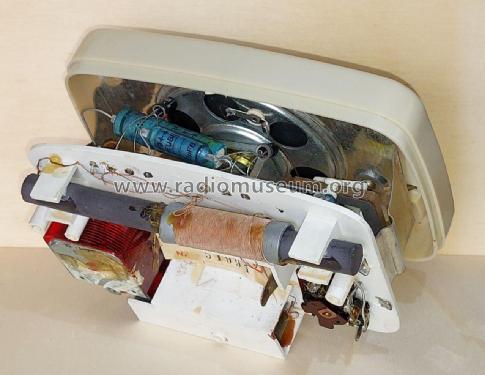

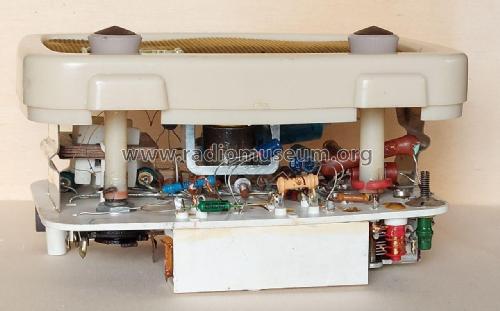

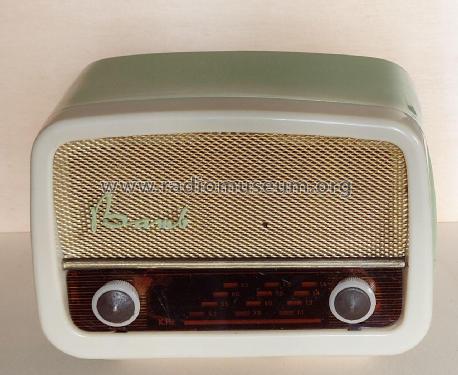

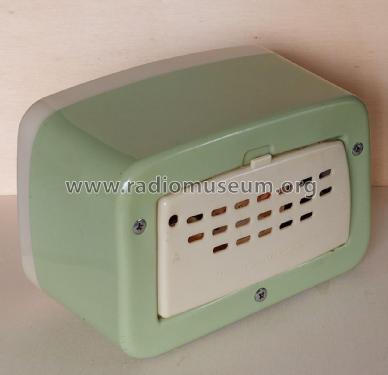

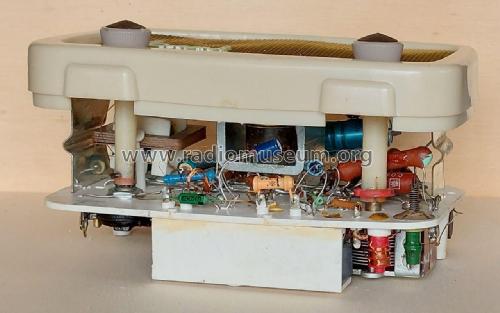

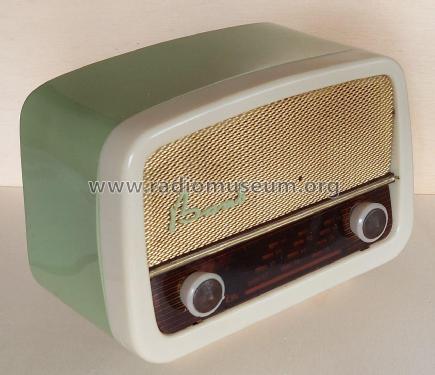

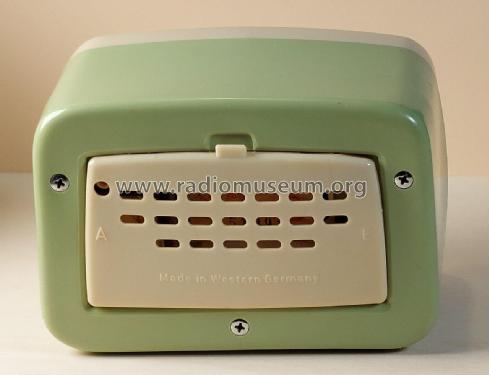

Reflexsuper; Gehäuse wie Bambino (in mehreren Farben erhältlich), Schaltung wie in Rexetta.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 80.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau 1959, Heft 22, Seite 535
