• Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 272660

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Dry Batteries / 2 x 4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 0.325 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

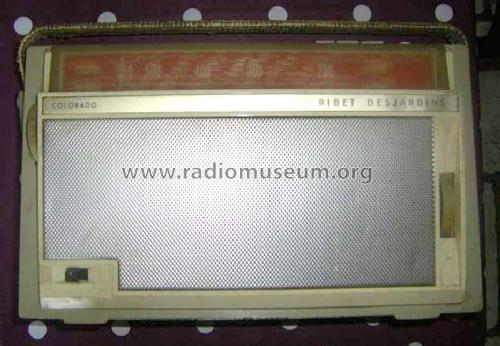

  • Model: Colorado - Ribet et Desjardins R-D; Paris
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 285 x 175 x 90 mm / 11.2 x 6.9 x 3.5 inch
  • Notes
  • 3 gammes d'ondes PO, GO et OC. 7 transistors + 2 diodes. Clavier 4 touches. Cadre à air, prise antenne voiture commutée. Commutateur de tonalité parole/musique. Prise HP extérieure.

    Coffret gainé plastique rouge et gris, ou gris 2 tons.

  • Net weight (2.2 lb = 1 kg)
  • 1.750 kg / 3 lb 13.7 oz (3.855 lb)
  • Price in first year of sale
  • 293.07 FRF
  • Mentioned in

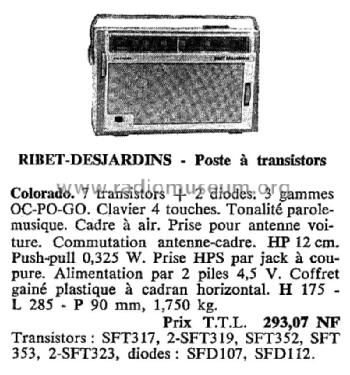

  • -- Original prospect or advert
