- Country
- France
- Manufacturer / Brand
- Ribet et Desjardins (R-D); Paris, Montrouge - voir aussi Unic
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228335
- Number of Transistors
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 3 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

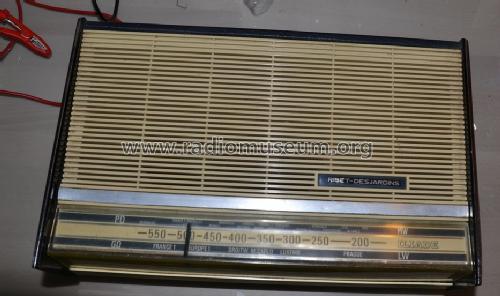

- Model: Iliade - Ribet et Desjardins R-D; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 320 x 90 x 200 mm / 12.6 x 3.5 x 7.9 inch
- Notes
-
Même transistors que le Cibot Radio modèle Le Sideral.
Boitier proche de celui du modèle Iroise.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Author
- Model page created by Michel Guigon. See "Data change" for further contributors.
