5335

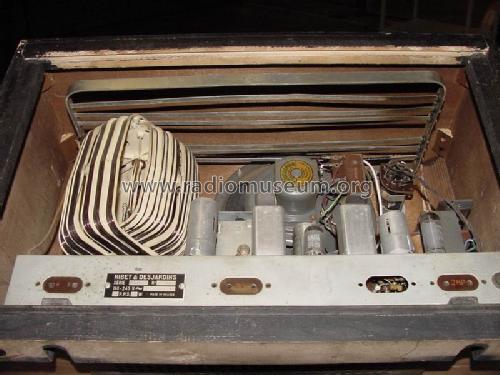

5335; Unic-Radio - voir (ID = 230799) Radio 5335; Unic-Radio - voir (ID = 230800) Radio

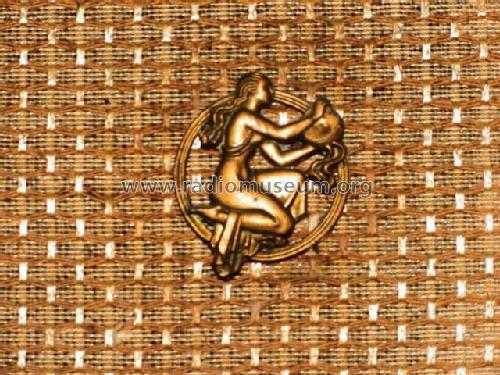

5335; Unic-Radio - voir (ID = 230801) Radio
Use red slider bar for more.

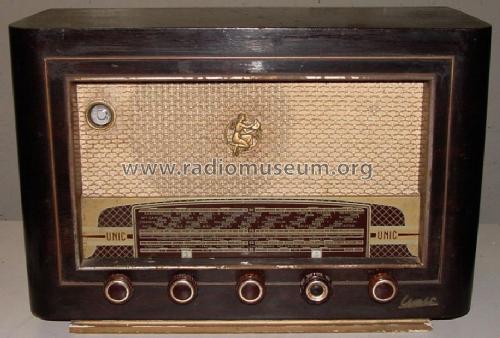

5335; Unic-Radio - voir (ID = 230799) Radio
Unic-Radio - voir: 5335 [Radio] ID = 230799 915x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5335, Unic-Radio - voir aussi Ribet-Desjardins; Montrouge

Country:  France
Manufacturer / Brand:  Unic-Radio - voir aussi Ribet-Desjardins; Montrouge
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6BA6 6AJ8 6BA6 6AV6 EM34 6BM5 EZ80
schematic requested
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 5335 - Unic-Radio - voir aussi Ribet-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 335 x 240 mm / 19.7 x 13.2 x 9.4 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data - - Data from my own collection

Model page created by Georg Richter. See "Data change" for further contributors.



All listed radios etc. from Unic-Radio - voir aussi Ribet-Desjardins; Montrouge
Here you find 73 models, 69 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
