• Year
  • 1986 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 330517
    • alternative name: Radioindustrija Zabreb

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / AC: 220 / R6: 5 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

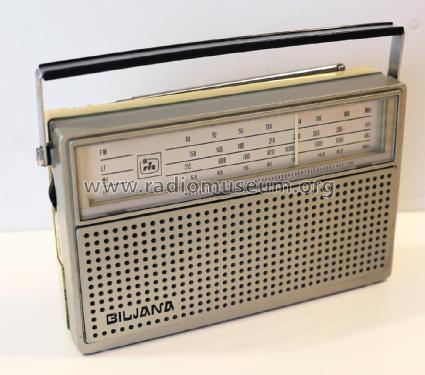

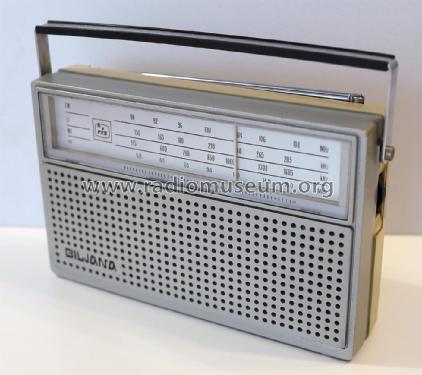

  • Model: Biljana 0602 - RIZ, Radio Industrija Zagreb;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 210 x 130 x 55 mm / 8.3 x 5.1 x 2.2 inch
  • Notes
  • Wavebands:
    FM = 88 - 108 MHz
    SW = 6.1 - 15.3 MHz
    MW = 515 - 1605 kHz
    LW = 150 - 285 kHz

    Made by Unitra ELTRA, see model Alicja R-603.

  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
