Pionir 60

Pionir 60; RIZ, Radioindustrija (ID = 536870) Radio

Pionir 60; RIZ, Radioindustrija (ID = 2298674) Radio
Pionir 60; RIZ, Radioindustrija (ID = 2427813) Radio Pionir 60; RIZ, Radioindustrija (ID = 2427814) Radio
Pionir 60; RIZ, Radioindustrija (ID = 2427815) Radio Pionir 60; RIZ, Radioindustrija (ID = 608770) Radio
Pionir 60; RIZ, Radioindustrija (ID = 608772) Radio Pionir 60; RIZ, Radioindustrija (ID = 572663) Radio
Pionir 60; RIZ, Radioindustrija (ID = 572664) Radio Pionir 60; RIZ, Radioindustrija (ID = 608771) Radio
Pionir 60; RIZ, Radioindustrija (ID = 1523758) Radio
Use red slider bar for more.

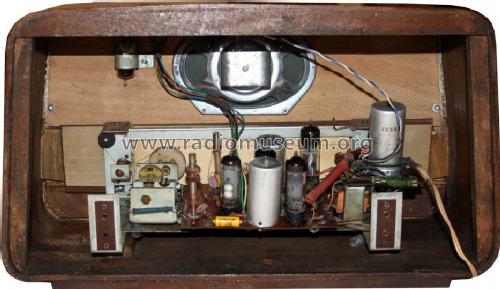

Pionir 60; RIZ, Radioindustrija (ID = 2427813) Radio
RIZ, Radioindustrija: Pionir 60 [Radio] ID = 2427813 1400x1070
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pionir 60, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UBF80 UCL82 UY85 UM80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Pionir 60 - RIZ, Radioindustrija Zagreb
Material Wooden case
Shape Tablemodel, low profile (big size).

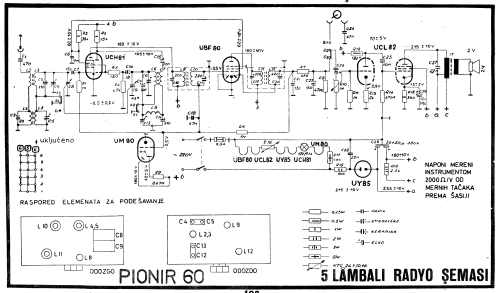

Notes Same schematics as RIZ Pionir 58 (Magic eye added, bigger box and pushbutton tone controls).
Source of data - - Data from my own collection

Model page created by Danko Tkalec. See "Data change" for further contributors.



All listed radios etc. from RIZ, Radioindustrija Zagreb
Here you find 63 models, 58 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
