Pionir BU458

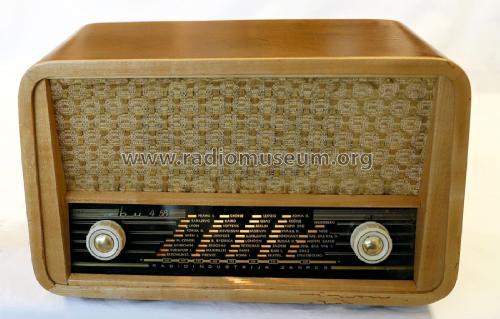

Pionir BU458; RIZ, Radioindustrija (ID = 775089) Radio

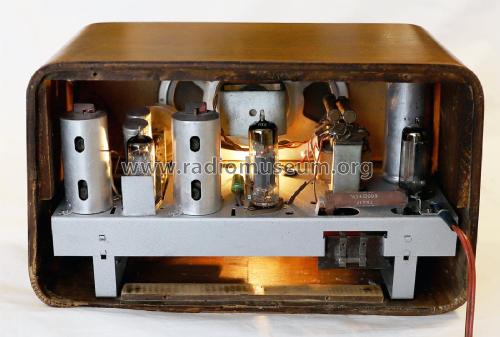

Pionir BU458; RIZ, Radioindustrija (ID = 586180) Radio Pionir BU458; RIZ, Radioindustrija (ID = 586183) Radio
Pionir BU458; RIZ, Radioindustrija (ID = 586185) Radio
Use red slider bar for more.
Pionir BU458; RIZ, Radioindustrija (ID = 586180) Radio
RIZ, Radioindustrija: Pionir BU458 [Radio] ID = 586180 700x511
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pionir BU458, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Pionir BU458 - RIZ, Radioindustrija Zagreb
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 310 x 195 x 152 mm / 12.2 x 7.7 x 6 inch
Notes Ovallautsprecher 3 Watt (156x104mm).
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)

Model page created by Zlatan Mumlek. See "Data change" for further contributors.
