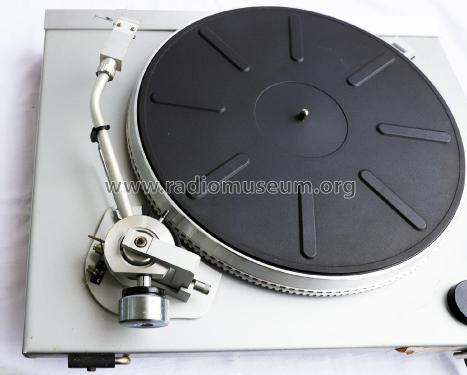

Turandot GM-7606

Turandot GM-7606; RIZ, Radioindustrija (ID = 2424806) R-Player Turandot GM-7606; RIZ, Radioindustrija (ID = 2424807) R-Player
Turandot GM-7606; RIZ, Radioindustrija (ID = 2424808) R-Player Turandot GM-7606; RIZ, Radioindustrija (ID = 2424809) R-Player
Turandot GM-7606; RIZ, Radioindustrija (ID = 2424810) R-Player Turandot GM-7606; RIZ, Radioindustrija (ID = 2424811) R-Player
Use red slider bar for more.
Turandot GM-7606; RIZ, Radioindustrija (ID = 2424806) R-Player
RIZ, Radioindustrija: Turandot GM-7606 [R-Player] ID = 2424806 1400x866
Select picture or schematic to display from thumbnails on the right and click for download.
For model Turandot GM-7606, RIZ, Radioindustrija Zagreb

Country:  Yugoslavia
Manufacturer / Brand:  RIZ, Radioindustrija Zagreb
alternative name

Radioindustrija Zabreb
Year: 1982/1982 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 9: BC238 BC238 BC238 BC211 BC308 BC308 BC238 BC238 BC238
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Turandot GM-7606 - RIZ, Radioindustrija Zagreb
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 440 x 130 x 380 mm / 17.3 x 5.1 x 15 inch
Notes

Same as UNITRA-FONICA Bernard GS-431
Manual Belt drive Turntable electronicaly regulated DC motor.
J-shape Arm with MF-100 cartridge (spheric needle)

Platter 302 mm, weight 1 kg.
S/N >50dB, wow and flutter < 0,15.





Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in - - Manufacturers Literature

Model page created by Danko Tkalec. See "Data change" for further contributors.
