Super-Spulensatz

Super-Spulensatz ; R.J.G., Standard (ID = 2372906) mod-past25 Super-Spulensatz ; R.J.G., Standard (ID = 2372907) mod-past25
Super-Spulensatz ; R.J.G., Standard (ID = 2372908) mod-past25 Super-Spulensatz ; R.J.G., Standard (ID = 2372909) mod-past25
Use red slider bar for more.
Super-Spulensatz ; R.J.G., Standard (ID = 2372906) mod-past25
R.J.G., Standard: Super-Spulensatz [mod-past25] ID = 2372906 1400x1356
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Spulensatz, R.J.G., Standard Radio;

Country:  Germany
Manufacturer / Brand:  R.J.G., Standard Radio;
Year: 1946–1950 ?? Category: Radio module post 1925 (not a part, not a key)
Main principle ZF/IF 468 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Super-Spulensatz - R.J.G., Standard Radio;
Material Various materials
Shape Chassis only or for «building in»
Notes

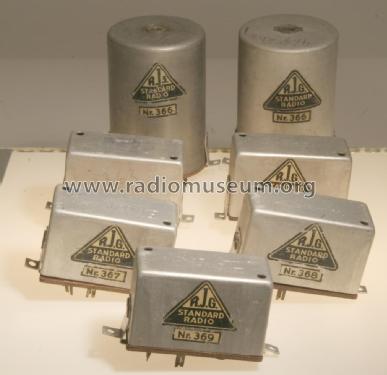

Super - Spulensatz

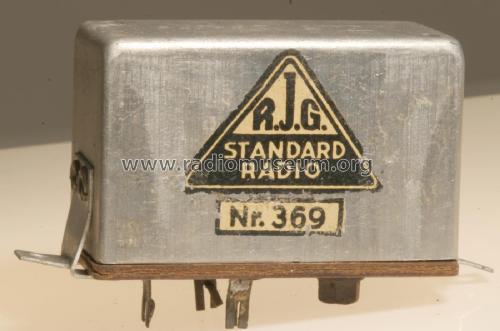

Nr. 369           ZF-Sperre (468 kHz)
Nr. 363           MW-LW-Eingangskreis
Nr. 367           KW-Eingangskreis

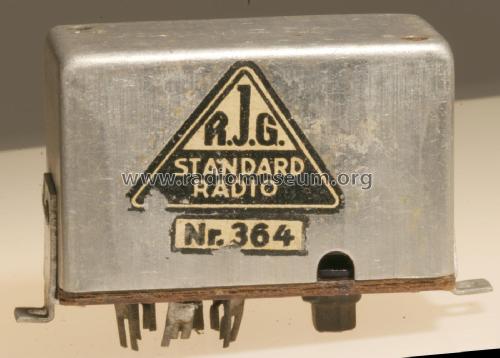

Nr. 364           MW-LW-Oszillator
Nr. 368           KW-Oszillator
Nr. 366           2 Stück ZF-Filter 468 kHz

Model page created by Harald Giese. See "Data change" for further contributors.
