Strad PW461
R.M.Electric, Durham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- R.M.Electric, Durham
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75124
-
- Brand: Strad
Strad
gb 194x strad
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Strad PW461 - R.M.Electric, Durham
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 400 x 200 x 250 mm / 15.7 x 7.9 x 9.8 inch
- Notes
-
This was the first domestic radio made by R.M. Electric, The Electrical Trader states this was released in September 1946.
- Mentioned in

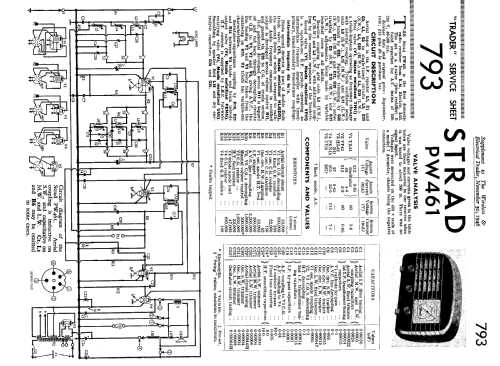

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (Trader no. 793, 30/11/1946)
- Author
- Model page created by Werner Tschiesche. See "Data change" for further contributors.
- Other Models
-
Here you find 19 models, 11 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from R.M.Electric, Durham
Collections
The model Strad is part of the collections of the following members.
Museums
The model Strad can be seen in the following museums.
Forum contributions about this model: R.M.Electric,: Strad PW461
Threads: 1 | Posts: 1

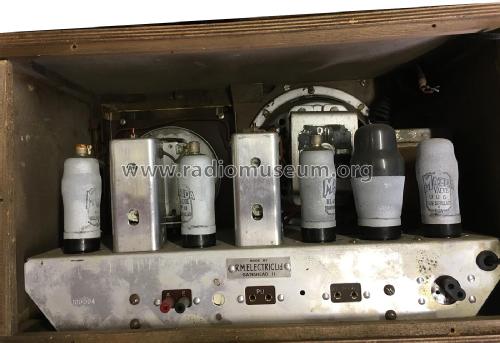

Le valvole montate su questa radio hanno attacco octal, ma i piedini sono disposti su una circonferenza leggermente più piccola del normale OCTAL, per cui, anche se apparentemente simili, non si innestano sui comuni octal, Tale attacco è definito: OCTAL MAZDA oppure OCTAL INGLESE
Antonio Maida, 06.Feb.12
