Gemini 5 RD5 - DAB

Gemini 5 RD5 - DAB; Roberts Radio Co.Ltd (ID = 1940379) Radio Gemini 5 RD5 - DAB; Roberts Radio Co.Ltd (ID = 1940381) Radio
Gemini 5 RD5 - DAB; Roberts Radio Co.Ltd (ID = 1940383) Radio Gemini 5 RD5 - DAB; Roberts Radio Co.Ltd (ID = 1940384) Radio
Use red slider bar for more.
Gemini 5 RD5 - DAB; Roberts Radio Co.Ltd (ID = 1940379) Radio

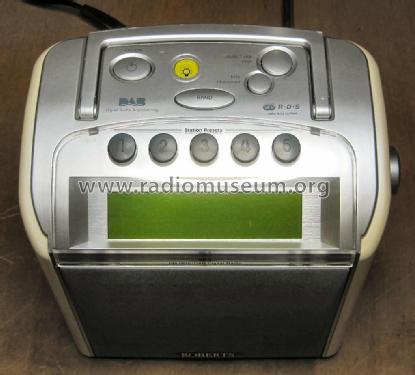

Roberts Radio Co.Ltd: Gemini 5 RD5 - DAB [Radio] ID = 1940379 1024x1039
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gemini 5 RD5 - DAB, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:
photo with permission of owner

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 2003 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes -1
Main principle DSP, Digital Signal Processor
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details
Power type and voltage Line / Batteries (any type) / 230; 4 x 1.5 Volt
Loudspeaker 2 Loudspeakers / Ø 12.5 cm = 4.9 inch
Power out 1.8 W (max.)
from Radiomuseum.org Model: Gemini 5 RD5 - DAB - Roberts Radio Co.Ltd., East
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 18.7 x 20.1 x 12.5 mm / 0.7 x 0.8 x 0.5 inch
Notes

Frequency Coverage
FM 87.5-108MHz, and facility to store 5 stations, otherwise search.
DAB 174.928 - 239.200MHz, and facility to create 5 favorites from the stored stations.

Battery Life; Approx. 30 hours of listening for 4 hours a day at normal volume using alkaline D cells, thus over 400mA consumption, thus about x6 an AM/FM only set.

Main Loudspeaker 125mm 4ohms
Tweeter 38mm 4 ohms

Batteries 4 x LR20 (D size)

Collectors' prices

Model page created by Mike Edwards. See "Data change" for further contributors.
