For model Junior, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:
A blue Roberts Junior portable battery valve radio c.1949. Courtesy of Mr. Ron Bryan.

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1949–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK91 DF91 DAF91 DL92
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details

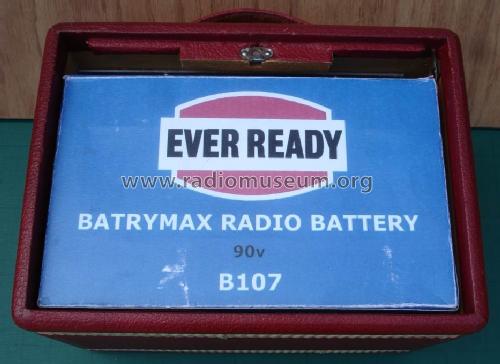

Power type and voltage Dry Batteries / 90; & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Junior - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.3 x 6.4 x 5.2 inch / 262 x 163 x 132 mm
Notes Introduced April 1949 at £14 14s 0d including batteries + purchase tax
Price in first year of sale 15.00 GBP
Collectors' prices
External source of data Konrad Birkner
Mentioned in Wireless and Electrical Trader

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
