M4Q

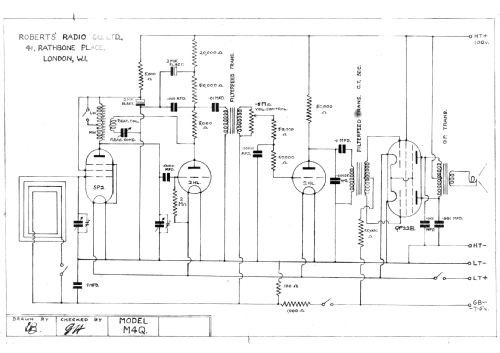

M4Q ; Roberts Radio Co.Ltd (ID = 2252719) Radio

M4Q ; Roberts Radio Co.Ltd (ID = 2252717) Radio

M4Q ; Roberts Radio Co.Ltd (ID = 2252718) Radio
M4Q ; Roberts Radio Co.Ltd (ID = 2253378) Radio M4Q ; Roberts Radio Co.Ltd (ID = 2253379) Radio
M4Q ; Roberts Radio Co.Ltd (ID = 2253380) Radio
Use red slider bar for more.

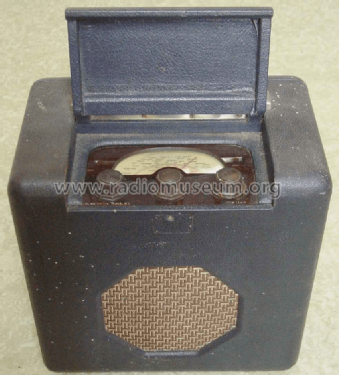

M4Q ; Roberts Radio Co.Ltd (ID = 2253378) Radio
Roberts Radio Co.Ltd: M4Q [Radio] ID = 2253378 851x940
Select picture or schematic to display from thumbnails on the right and click for download.
For model M4Q, Roberts Radio Co.Ltd., East Molesey, Surrey, UK

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: SP2 HL2 HL2 QP22B
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 108 & -7.5 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: M4Q - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 11.5 x 11 x 7 inch / 292 x 279 x 178 mm
Net weight (2.2 lb = 1 kg) 20 lb 8 oz (20.5 lb) / 9.307 kg
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Wireless Weekly

Model page created by Trevor Trangmar. See "Data change" for further contributors.
