Oriole 5

Oriole 5; Roberts Radio Co., (ID = 1980230) Radio Oriole 5; Roberts Radio Co., (ID = 1980231) Radio

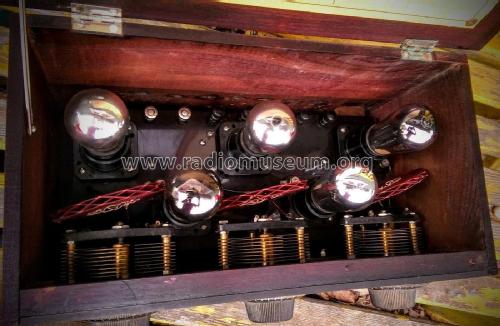

Oriole 5; Roberts Radio Co., (ID = 1980233) Radio Oriole 5; Roberts Radio Co., (ID = 1980236) Radio
Oriole 5; Roberts Radio Co., (ID = 1950468) Radio Oriole 5; Roberts Radio Co., (ID = 1980237) Radio
Oriole 5; Roberts Radio Co., (ID = 1980239) Radio Oriole 5; Roberts Radio Co., (ID = 1980240) Radio
Use red slider bar for more.
Oriole 5; Roberts Radio Co., (ID = 1980230) Radio
Roberts Radio Co.,: Oriole 5 [Radio] ID = 1980230 1400x1573
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oriole 5, Roberts Radio Co., Henry C., Inc.: New York, NY:
eBay item number:121939929629

Country:  United States of America (USA)
Manufacturer / Brand:  Roberts Radio Co., Henry C., Inc.: New York, NY
Brand

Oriole
Year: 1925 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV201A UV201A UV201A
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Oriole 5 - Roberts Radio Co., Henry C.,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes Three dials (primary tuning control knobs)
Price in first year of sale 47.50 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965 (November 1925, Electrical Record Supplement page 75)


All listed radios etc. from Roberts Radio Co., Henry C., Inc.: New York, NY
Here you find 4 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
