For model R25, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:

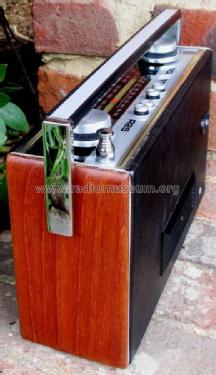

Roberts R25 MW/LW/FM radio in black

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1986–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 220-240 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: R25 - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 150 x 80 mm / 9.8 x 5.9 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Literature/Schematics (1) -- Collector info (Sammler)

Model page created by Howard Craven. See "Data change" for further contributors.
