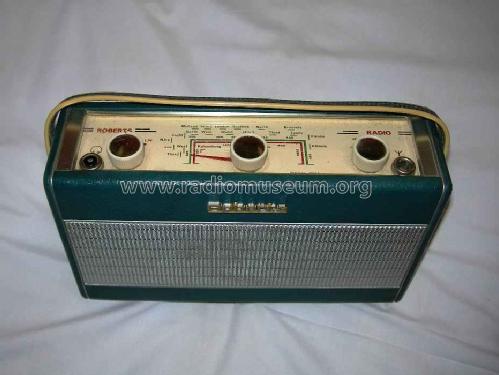

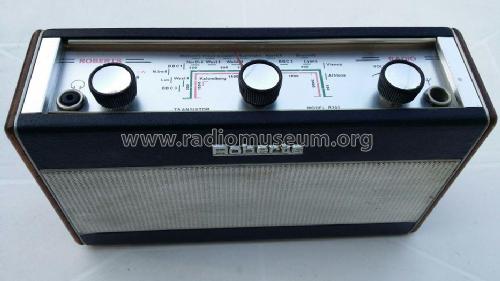

For model R303, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:
A Roberts R303 in red.

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1967–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF115 AF117 AF117 BC149 AC127 AC127 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
Power out 0.65 W (unknown quality)
from Radiomuseum.org Model: R303 - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 150 x 80 mm / 10.2 x 5.9 x 3.1 inch
Notes The 3 x AF11x transistors are in the Mullard LP1159/1 IF module. Only one of these transistors is shown on the schematic. Speaker 7 x 3.5 inch. Price 15gns.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 15.75 £
Source of data -- Original-techn. papers.
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) -- Original-techn. papers. (ERT Chart 1637)
Literature/Schematics (2) Trader Sheet 1824

Model page created by Howard Craven. See "Data change" for further contributors.
