• Country
• Great Britain (UK)

• Manufacturer / Brand
• Roberts Radio Co.Ltd., East Molesey, Surrey, UK

• Year
• 1988 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307993

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• LA1186 BA4236 2SC536 2SC536 2SB698 2SC536 TDA1904

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220-240; D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (max.)

• Material
• Various materials

• from Radiomuseum.org

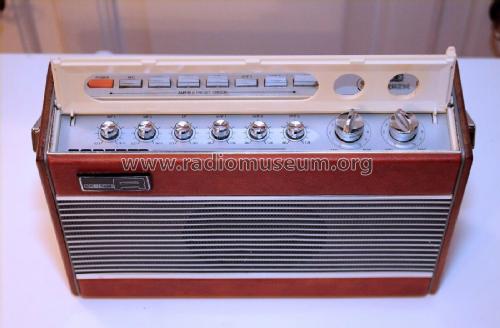

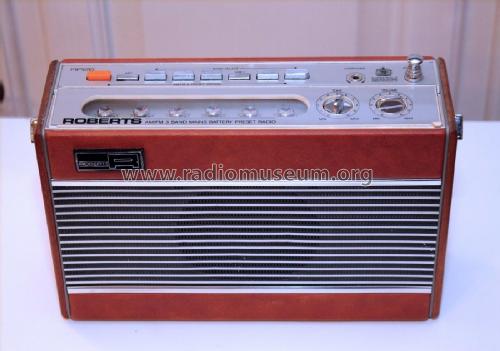

• Model: AM/FM 3 Band Mains Battery Preset Radio RP26 - Roberts Radio Co.Ltd., East

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10.5 x 6.5 x 3 inch / 267 x 165 x 76 mm

• Notes

• Long, Medium & VHF FM portable mains battery radio.
  FM coverage 88 to 108 Mhz
  Presets; 3 for FM, 2 for MW, 1 for LW

  2 watts at 10% distortion on mains, 1 watt at 10% distortion on battery

  Similar to the Roberts RP-26B model.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
