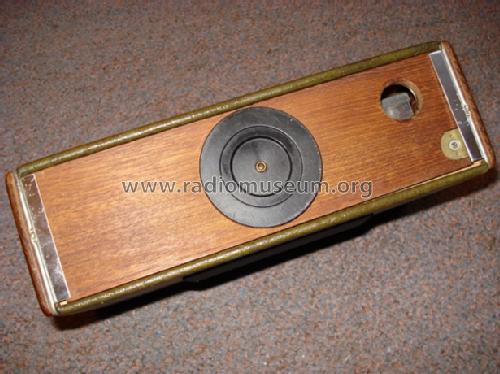

For model RT22, Roberts Radio Co.Ltd., East Molesey, Surrey, UK:

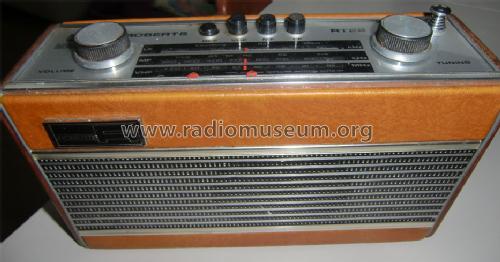

Roberts RT22 MW/LW/FM radio in red

Country:  Great Britain (UK)
Manufacturer / Brand:  Roberts Radio Co.Ltd., East Molesey, Surrey, UK
Year: 1979–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF194 BF195 BF195 BF195 BC148 BF194 BC148 BC158 BC158 BC338 BC328 AA119 AA119 AA119
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
Power out 0.45 W (undistorted)
from Radiomuseum.org Model: RT22 - Roberts Radio Co.Ltd., East
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 106 x 75 mm / 9.6 x 4.2 x 3 inch
Notes

Im Schaltbild ist irrtümlicherweise R47 als Lautstärkeregler angegeben. Als Lautstärkeregler dient aber R33.

Bei den Halbleitern sind jene des FM-Tuners nicht enthalten. Dieser ist eine "sealed unit" und auch nicht abgleichbar.

The list of semiconductors excludes those in the sealed Roberts RR1412/4 FM module.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (3357 21.3.1979)

Model page created by Howard Craven. See "Data change" for further contributors.
