• Year
  • 1978–1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 16826

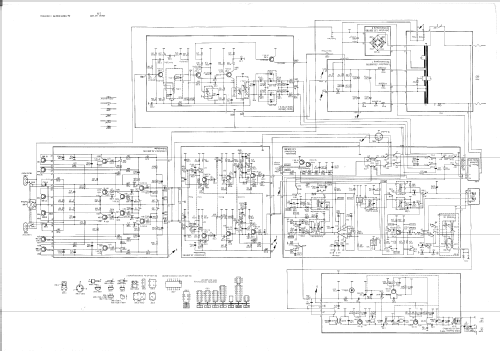

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 30
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Set 4001 - Robotron Rechen- und

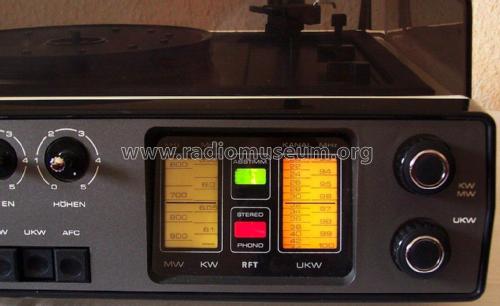

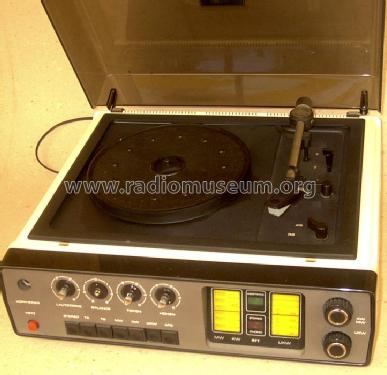

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 440 x 194 x 394 mm / 17.3 x 7.6 x 15.5 inch
  • Notes
  • Receiver-Plattenspieler aus Dresden. 1 IC, 23 Dioden. Plattenspielerchassis Türkis 024. NF-Ausgangsleistung 2 x 12 Watt an 4 Ω. Getrennte AM/FM-Abstimmung mit Bandskalen.

    Halbleitertypen sind jeweils einmal aufgeführt.

  • Net weight (2.2 lb = 1 kg)
  • 11.3 kg / 24 lb 14.2 oz (24.89 lb)
  • Price in first year of sale
  • 1,360.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

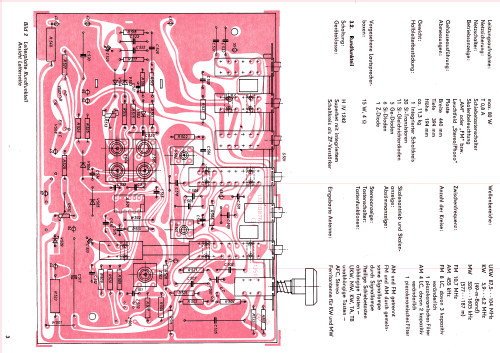

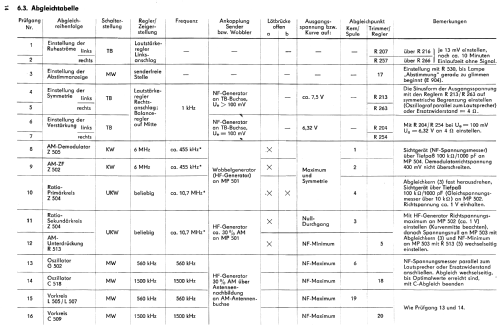

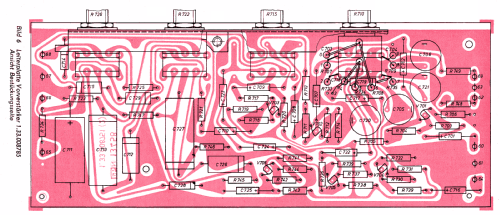

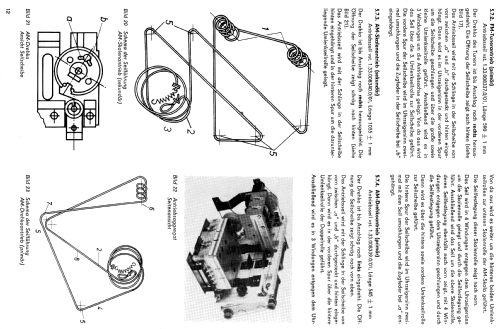

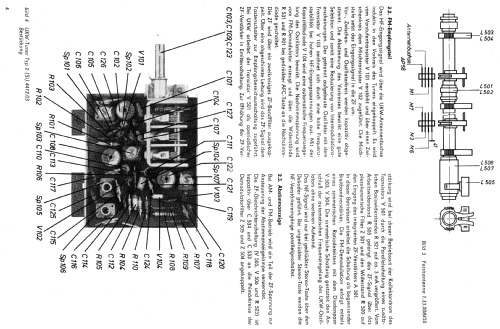

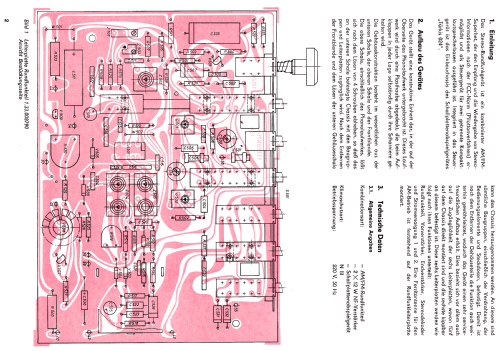

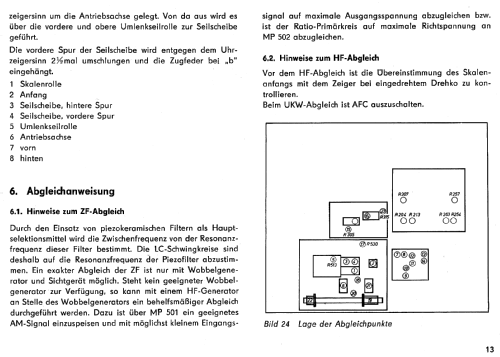

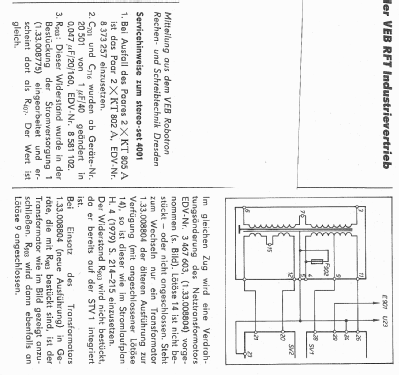

  • Literature/Schematics (1)
  • Original-Gerätepapiere.
  • Picture reference
  • Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
