Stereo Receiver SR2400

Stereo Receiver SR2400; Robotron (ID = 587171) Radio

Stereo Receiver SR2400; Robotron (ID = 587172) Radio

Stereo Receiver SR2400; Robotron (ID = 1998268) Radio

Stereo Receiver SR2400; Robotron (ID = 1998269) Radio

Stereo Receiver SR2400; Robotron (ID = 1998270) Radio

Stereo Receiver SR2400; Robotron (ID = 1998271) Radio

Stereo Receiver SR2400; Robotron (ID = 1998272) Radio

Stereo Receiver SR2400; Robotron (ID = 1998273) Radio

Stereo Receiver SR2400; Robotron (ID = 1998274) Radio

Stereo Receiver SR2400; Robotron (ID = 1998275) Radio
Stereo Receiver SR2400; Robotron (ID = 1089241) Radio Stereo Receiver SR2400; Robotron (ID = 1171677) Radio
Stereo Receiver SR2400; Robotron (ID = 1171678) Radio Stereo Receiver SR2400; Robotron (ID = 1239368) Radio
Stereo Receiver SR2400; Robotron (ID = 1239369) Radio Stereo Receiver SR2400; Robotron (ID = 1279273) Radio
Stereo Receiver SR2400; Robotron (ID = 1279274) Radio Stereo Receiver SR2400; Robotron (ID = 1279279) Radio
Stereo Receiver SR2400; Robotron (ID = 1279281) Radio Stereo Receiver SR2400; Robotron (ID = 1279287) Radio
Use red slider bar for more.
Stereo Receiver SR2400; Robotron (ID = 1089241) Radio

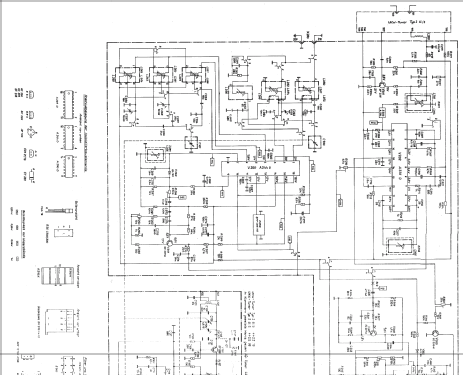

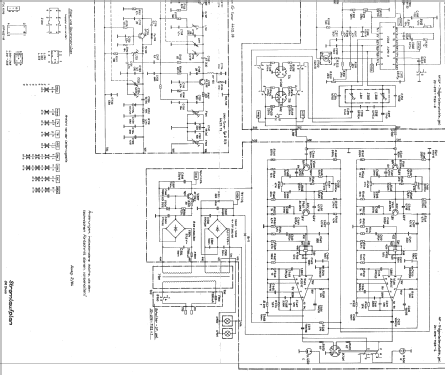

Robotron: Stereo Receiver SR2400 [Radio] ID = 1089241 933x465

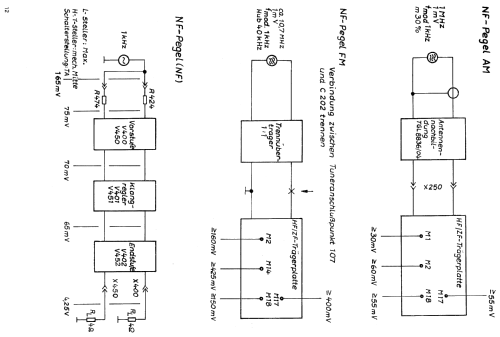

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver SR2400, Robotron Büromaschinen Sömmerda, VEB; Sömmerda /Thür. (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron Büromaschinen Sömmerda, VEB; Sömmerda /Thür. (Ostd.)
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 3 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereo Receiver SR2400 - Robotron Büromaschinen
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 110 x 290 mm / 15.4 x 4.3 x 11.4 inch
Notes

FM bis 104 MHz, SW 49- und 41-m-Band. Je ein Keramikfilter für AM und für FM, 5 ICs, schaltbare AFC, Anschlüsse für TA, TB und Kopfhörer, MPX- und Pilottonfilter. Ausgangsleistung 2x 4,5 Watt Sinus. Vorstellung auf der Leipziger Herbstmesse 1984.

Im Schaltplan und auf der Leiterplatte ist im Netzteil eine 160 mA Sicherung gezeichnet. Diese wurde im Laufe der Weiterentwicklung weggelassen und mit einem Widerstand überbrückt. Der Wert dises Widerstandes beträgt 10 Ohm.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 750.00 DM
Mentioned in - - Data from my own collection

Model page created by Dieter Erdmann. See "Data change" for further contributors.



All listed radios etc. from Robotron Büromaschinen Sömmerda, VEB; Sömmerda /Thür. (Ostd.)
Here you find 10 models, 9 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
