Progress RR1201/1202; Robotron-Elektronik (ID = 238510) Radio
Robotron-Elektronik: Progress RR1201/1202 [Radio] ID = 238510 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Progress RR1201/1202, Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)
Brand

Rechenelektr. Meining./ Zella
Year: 1979–1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: SF235 SF235 SF225 A281D A244D SC239 A210K KA213 GA101 GA113 GA113
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 3 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Progress RR1201/1202 - Robotron-Elektronik Zella-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 183 x 185 mm / 17.3 x 7.2 x 7.3 inch
Notes

3 IC, 3 GE-Dioden, 1 Si-Diode, KW 49-m-Band. Übertragungsbereich: 80...15000 Hz, Anschlüsse für Zweitlautsprecher, TA, TB, Außenantenne UKW nah und fern , eingebaute Rückwandantenne für UKW.
Für AM-Empfang Ferritantenne, zusätzlich Anschluss für Außenantenne.
Modultechnik, 5 KHz-Sperre, AFC schaltbar.

Zusätzlich zu den L/C Kreisen sind im Modell zwei Piezofilter der Typen SPF455 und SPF10700 eingesetzt.

Unterschiede RR1201 und RR1202 in der Frontgestaltung.

Gleiches Chassis, aber größeres Gehäuse mit zwei Lautsprechern als RR1211 in Stralsund gebaut.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 500.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

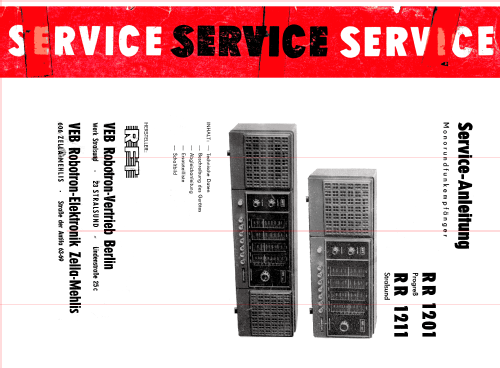

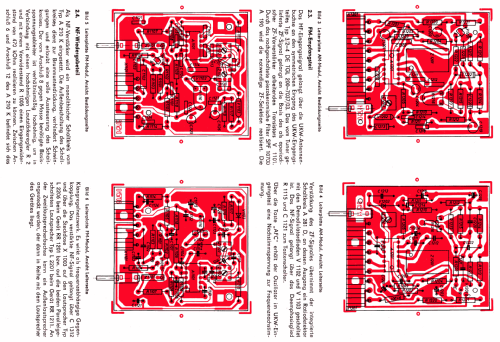

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jörg Kulbe. See "Data change" for further contributors.
