Strelasund RR1021; Robotron Vertrieb (ID = 236931) Radio
Robotron Vertrieb: Strelasund RR1021 [Radio] ID = 236931 933x700
Select picture or schematic to display from thumbnails on the right and click for download.

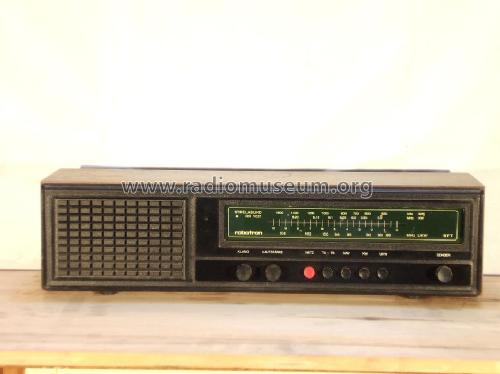

For model Strelasund RR1021, Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Year: 1982 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: SF235 SF235 SF225 A281 A211D
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Strelasund RR1021 - Robotron Vertrieb Berlin /
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 486 x 123 x 130 mm / 19.1 x 4.8 x 5.1 inch
Notes Transistoren: 2× SF235, SF225; ICs: A211D, A281D.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 360.00 Mark
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1987)

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Here you find 13 models, 13 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
