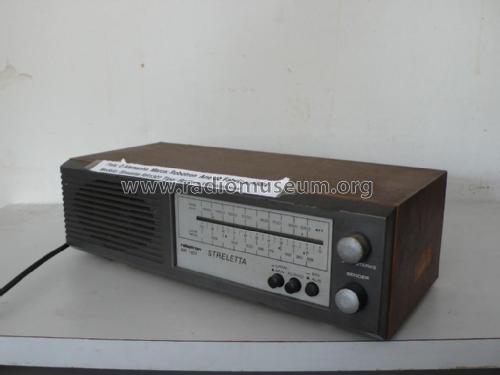

Streletta RR1301; Robotron Vertrieb (ID = 116196) Radio
Robotron Vertrieb: Streletta RR1301 [Radio] ID = 116196 933x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model Streletta RR1301, Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)

Country:  Germany
Manufacturer / Brand:  Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Year: 1984–1989 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3: SF235 SF235 SF225 A225D A211D A281D
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 1 W (undistorted)
from Radiomuseum.org Model: Streletta RR1301 - Robotron Vertrieb Berlin /
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 351 x 102 x 155 inch / 8915 x 2591 x 3937 mm
Notes

Holzgehäuse mit Dekorfolie und Plastfrontblende; LED-Zeiger.

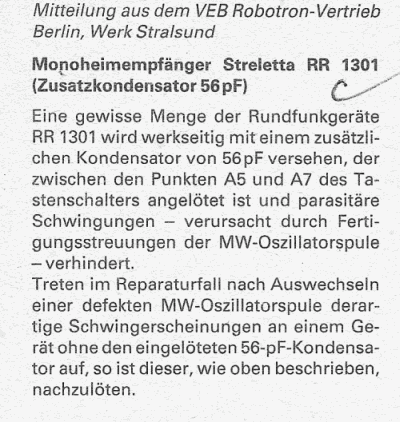

In der Schaltung kommt der A225D1 zur Anwendung, ein Ausmesstyp des A225D mit schlechteren Daten hinsichtlich Klirrfaktor und AM-Unterdrückung. Laut Hersteller geeignet für "weniger anspruchsvolle Anwendungen".

Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 295.00 Mark
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Sortimentskataloge Elektroakustik (DDR, 1987 und 1989)

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)
Here you find 13 models, 13 with images and 11 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
