• Country
• Germany

• Manufacturer / Brand
• Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73312

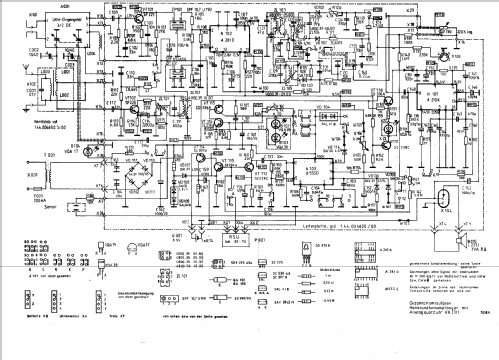

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• SC307 SC236 SC236 SC236 SC236 SF225 SF225 SD336 SD336 A281D A210K B555D

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

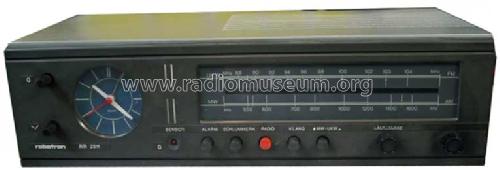

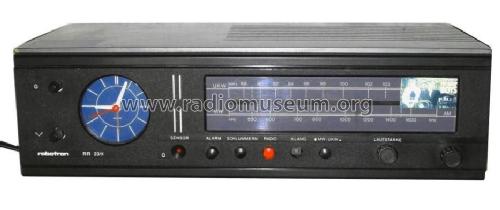

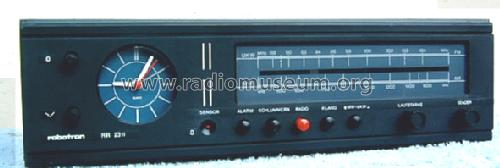

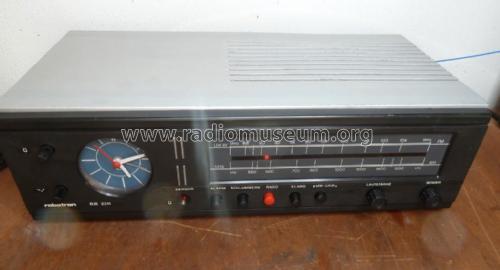

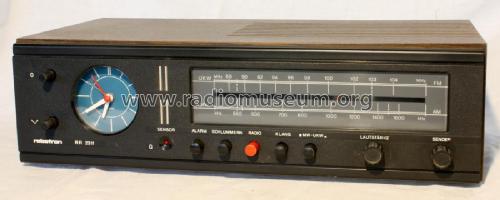

• Model: Streletta RR2311 - Robotron Vertrieb Berlin /

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 340 x 100 x 170 mm / 13.4 x 3.9 x 6.7 inch

• Notes

• Weckradio mit Quarz-Analoguhr. Gehäuse: Holz mit Plastfrontblende, metallicgespritzt. LED-Zeiger. Uhrenmodul 2000 Quartz.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 490.00 Mark

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Sortimentskatalog Elektroakustik (DDR, 1989)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
