For model Meiningen 2003, Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.):
D_Meiningen_2003

Country:  Germany
Manufacturer / Brand:  Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)
Brand

Rechenelektr. Meining./ Zella
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455 / 10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Meiningen 2003 - Robotron-Elektronik Zella-
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 154 x 172 mm / 23.6 x 6.1 x 6.8 inch
Notes

Der Empfänger Meiningen 2003 ist eine Weiterentwicklung des Prominent Automatik 2000. Der Empfangsbereich UKW wurde bis 104 MHz erweitert.Das Gerät enthält 7 Dioden, 2 Selengleichrichter und hat 4 Stationstasten für UKW.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
External source of data RFE 5/78
Source of data Radiokatalog Band 2, Ernst Erb

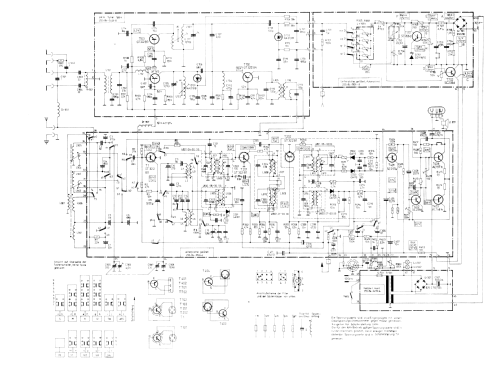

Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Jörg Kulbe. See "Data change" for further contributors.
