• Year
  • 1976
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 100622
    • Brand: Rechenelektr. Meining./ Zella

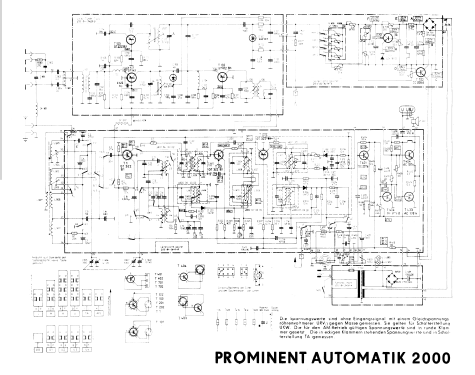

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 12
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1.6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Prominent Automatik 2000 - Robotron-Elektronik Zella-
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 600 x 142 x 147 mm / 23.6 x 5.6 x 5.8 inch
  • Notes
  • Monoempfänger. 4 Stationstasten für UKW, AFC, eingebaute Ferritantenne, Hilfsantenne für UKW. Anschlüsse TA, TB, Zweitlautsprecher.
  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Price in first year of sale
  • 555.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
