Stromversorgungseinschub K1510 STM K0310.01

Robotron-Elektronik Zella-Mehlis, VEB; Zella-Mehlis /Thür. (Ostd.)

Data
Forum
Pictures
Collections

  • Year
  • 1982 ?
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 322132
    • Brand: Rechenelektr. Meining./ Zella

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Power out
  • 35 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stromversorgungseinschub K1510 STM K0310.01 - Robotron-Elektronik Zella-
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 40 x 157 x 170 mm / 1.6 x 6.2 x 6.7 inch
  • Notes

  • Stromversorgungs-Baugruppe für das Mikrorecher-System MRS K 1510 der Robotron. Einbau in eigene Stromversorgungs-Baugruppeneinheit.

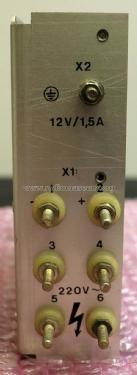

    6 Schraubklemmen. Netzversorgung 220 VAC, Ausgang 12 VDC / 1,5 A stabilisiert.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Author
  • Model page created by Helmut Matysik. See "Data change" for further contributors.
