• Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 140076

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Jukebox-Coin operated Phonograph; Loudspeaker + integr.Amplifier
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • 3 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 25 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org

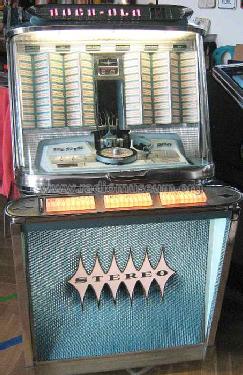

  • Model: Regis 200 1495 - Rock-Ola Manufacturing
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 780 x 1510 x 740 mm / 30.7 x 59.4 x 29.1 inch
  • Notes
  • This Rock Ola Jukebox model carries the typical "American car" styling of the sixties, has 200 selections (100 singles 45rpm), and is identical to the Regis 120, except for the record magazine and the selection capacity. The Regis 200 features a stereo amplifiers (2x 25W) and stereo pickup; stereo sound was only possible with external speakers (model No 1622), and the unit itself was equipped with mono speaker system (2x 12" speaker and one high-frequency horn). Additionally, a reverba-sound unit could be fitted. The main selection mechanism and selector as well as the record grip system / record player arm were activated using 2x DC motors. The models sold in Europe / Germany were equipped with a step-down transformer or directly available in 220V.
  • Net weight (2.2 lb = 1 kg)
  • 155 kg / 341 lb 6.6 oz (341.41 lb)
  • Mentioned in
  • - - Manufacturers Literature (Rock-Ola Parts Manual, Instructions & Installation Manual)
  • Author
  • Model page created by Vincent de Franco. See "Data change" for further contributors.
