• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182866

• • alternative name: Rogers Radio Tube

• Number of Tubes
• 4

• Valves / Tubes
• 1AC6 1T4 1S5 3V4

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

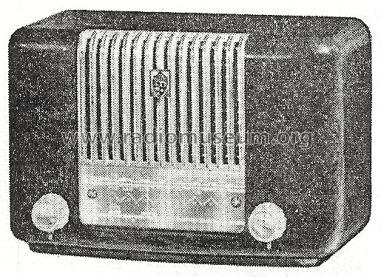

• Model: Battery Radio Receiver RM503 - Rogers-Majestic, Standard

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Rogers-Majestic/Philips RM503 Battery Radio Receiver;
  Compare with Philips PH102.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
