Majestic 760 Ch= 7M621

Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2239445) Radio

Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2239444) Radio

Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 663316) Radio
Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2293083) Radio Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2293084) Radio
Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2293085) Radio Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2293086) Radio
Use red slider bar for more.
Majestic 760 Ch= 7M621; Rogers-Majestic, (ID = 2293083) Radio
Rogers-Majestic,: Majestic 760 Ch= 7M621 [Radio] ID = 2293083 917x741
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 760 Ch= 7M621, Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto:

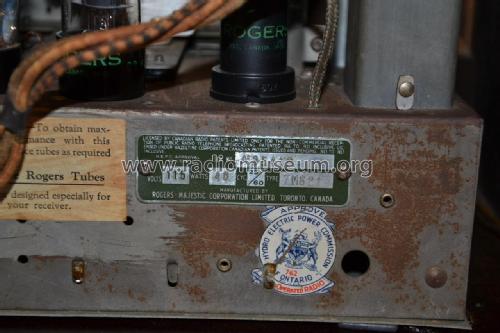

Photo kindly supplied by Bill Whalen

Country:  Canada
Manufacturer / Brand:  Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
alternative name

Rogers Radio Tube
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7M 6K7M 75M 41M 2X3 2X3
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Majestic 760 Ch= 7M621 - Rogers-Majestic, Standard
Notes The Rogers 12-60, 12-60B, Majestic 760B, De Forest Erie and Erie B are electronically identical.
Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 28 & Cross Reference
Literature/Schematics (1) -- Original-techn. papers. (Rogers-Majestic & De Forest Service Manual Volume 3, page 9)

Model page created by Robin Roeckers. See "Data change" for further contributors.
