Majestic 786 Ch= 7M832

Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 663319) Radio

Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2239701) Radio

Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2239702) Radio
Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2222326) Radio Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2222327) Radio
Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2222328) Radio
Use red slider bar for more.
Majestic 786 Ch= 7M832; Rogers-Majestic, (ID = 2222326) Radio

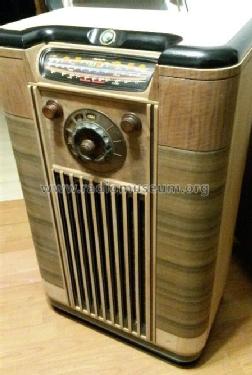

Rogers-Majestic,: Majestic 786 Ch= 7M832 [Radio] ID = 2222326 450x668
Select picture or schematic to display from thumbnails on the right and click for download.
For model Majestic 786 Ch= 7M832, Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto:

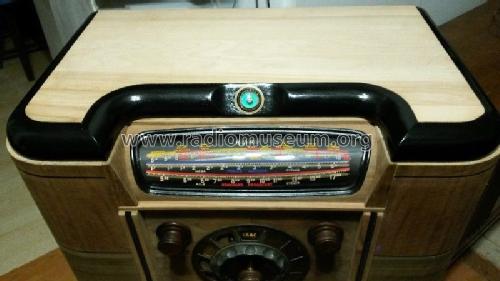

From a Canadian Kijiji advertisement.

Country:  Canada
Manufacturer / Brand:  Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
alternative name

Rogers Radio Tube
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A7M 6K7M 86M 6F5M 6X6 6F6M 2X3 2X3
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Majestic 786 Ch= 7M832 - Rogers-Majestic, Standard
Notes The 6X6 tube is a tuning indicator. The Rogers 12-86 and De Forest Prescott are electronically identical to this set.

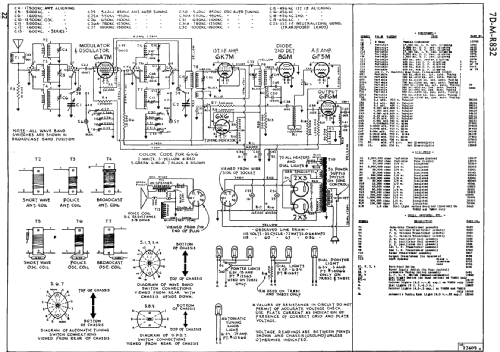

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 29 & 30
