• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160154

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

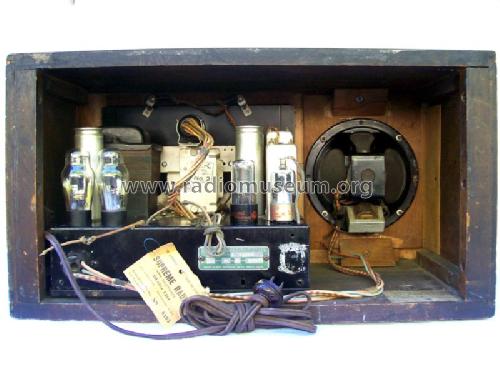

• 6J8M 6K7M 75M 41M 6X6 2X3 2X3

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands

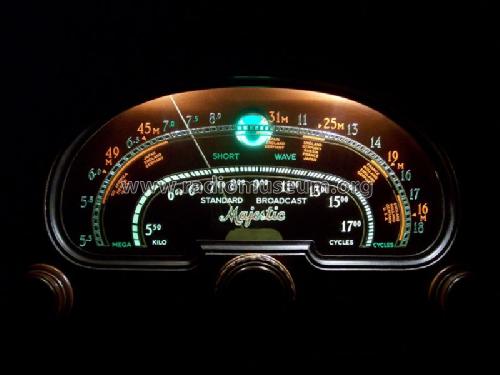

• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• from Radiomuseum.org
• Model: Majestic 871 Ch= 8M723 - Rogers-Majestic, Standard

• Dimensions (WHD)
• 21 x 11 x 11.5 inch / 533 x 279 x 292 mm

• Notes

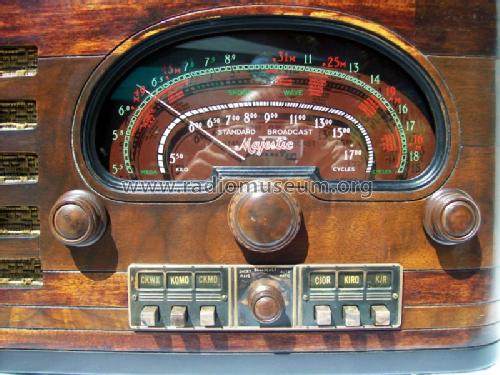

• This set has an automatic tuning mechanism. The 6X6 is a tuning indicator tube. The Rogers 13-71, 13-76, Majestic 876, De Forest Elgar and Bizet are electronically identical.

• Net weight (2.2 lb = 1 kg)
• 14.6 kg / 32 lb 2.5 oz (32.159 lb)

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 43 & 44

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
