• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 158128
    • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 456 kHz; 1 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Majestic Montcalm Ch= 54 - Rogers-Majestic, Standard
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24 x 40.375 x 13.25 inch / 610 x 1026 x 337 mm
  • Notes

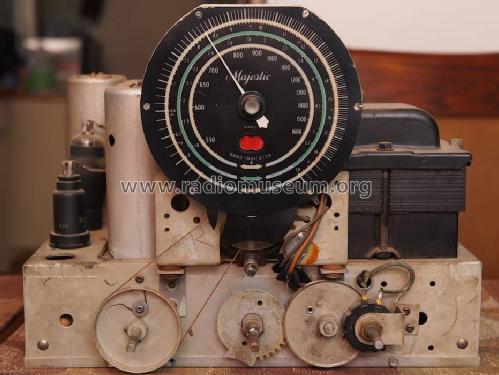

  • The 6-tube Majestic Montcalm design includes an RF amp and two-stage IF amp with variable IF bandwidth control.  The 5 knobs control coarse tuning (top outer) and vernier tuning (top inner), bandswitch (bottom left), a multifunction knob incorporating On/off - Variable IF - Tone (bottom center), and volume (bottom right). There is a tuning indicator mechanism which uses a 24V dial lamp that is bright while tuning between stations, and then dims at sharpest tuning.  The 3 bands are BC (530-1700 kHz), Police (1.7-5.4 MHz), and SW (5-19 MHz).  The chassis has connections for balanced and unbalanced antennas.

    Rogers 10-65 and 10-66 are electronically identical to this set.

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section page 5, 11, 12 & Cross-Reference
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
