- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146820
-
- alternative name: Rogers Radio Tube
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org

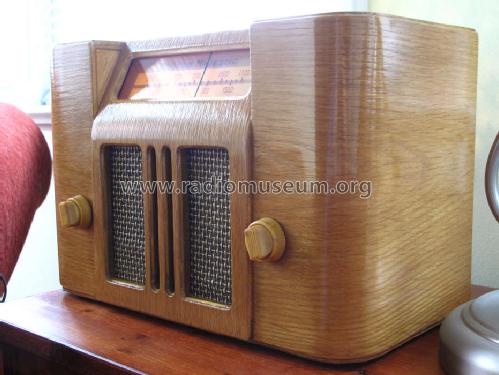

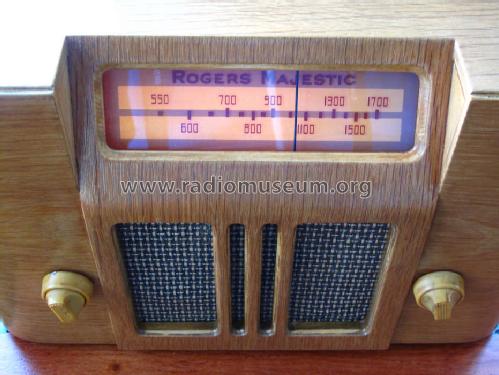

- Model: R266 - Rogers-Majestic, Standard
- Notes
- Rogers Majestic R166, R156A, R266 and DeForest D556A, D566, D666 use the same chassis and schematic.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Rogers-M. sheet 100
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
