• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1925/1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156720

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 32_Rogers 32_Rogers 32_Rogers 32_Rogers 32_Rogers R100_Rogers R100_Rogers

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110 & 4.5 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rogers 100 Super A/C Console Model - Rogers-Majestic, Standard

• Shape
• Console, Highboy (legs > 50 %).

• Notes

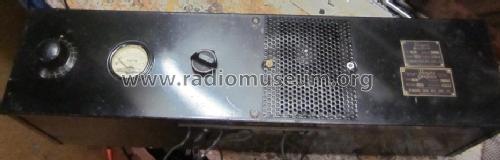

• Early AC heated tubes with overhead filament terminals. The heater and B voltages are provided by a separate chassis power source housing the two R100 tube rectifiers while the C voltage is supplied by a 4.5 volt battery.

  See model 105 with the same chassis and cabinet, but without AC power supply (battery only).

• Price in first year of sale
• 370.00 $

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• Saga of the Vacuum Tube, Tyne (about the AC tubes, p.345)

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
