Rogers Ten-12 (10-12) Ch= 20
Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158132
-
- alternative name: Rogers Radio Tube
Original shippihg crate for this radio.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rogers Ten-12 Ch= 20 - Rogers-Majestic, Standard
- Notes
-
The first 6F6M listed is driving a tuning indicator instrument. A push-pull output circuit is incorporated into this set. The Rogers 10-120 and Majestic Normandie are electronically identical to this set. A timer clock is incorporated into this set to automatically turn it on and off at preset times.
This is the Tenth Anniversary model for Rogers Radio.

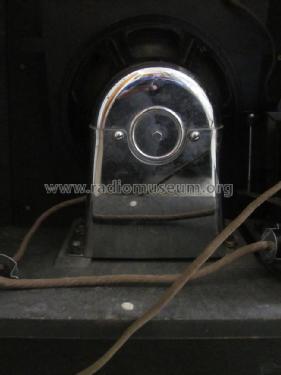

It has a chrome chassis and chrome speaker.
This set features a LongWave band (150-400 kHz), that the Rogers alignment instructions of the time called "X band".
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Rogers-Majestic section page 6, 11, 12 & Cross-Reference
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
