Rogers 12-126 "Teledial" Ch= 7R1232

Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 664362) Radio

Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 664363) Radio
Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799356) Radio Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799357) Radio
Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799358) Radio Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799359) Radio
Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799360) Radio Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799361) Radio
Use red slider bar for more.
Rogers 12-126 'Teledial' Ch= 7R1232; Rogers-Majestic, (ID = 799356) Radio
Rogers-Majestic,: Rogers 12-126 "Teledial" Ch= 7R1232 [Radio] ID = 799356 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rogers 12-126 'Teledial' Ch= 7R1232, Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

Country:  Canada
Manufacturer / Brand:  Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
alternative name

Rogers Radio Tube
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6K7M 6A7M RT_neon 6K7M 6X6 6F7M 6F7M 6F6M 6F6M 2X3 2X3 2X3 2X3
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Rogers 12-126 "Teledial" Ch= 7R1232 - Rogers-Majestic, Standard
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 27 x 40 x 15 inch / 686 x 1016 x 381 mm
Notes

This model is equipped with automatic tuning. The RT_neon is a voltage regulator tube. The 6X6 is a tuning indicator tube. The second 6F7M tube is used as a phase inverter. The radio has a telephone dial and an illuminated glass slide rule rolling pin dial window. Cabinet by the Hespeler Furniture Co. Ltd. in Ontario. The Majestic 7126 and De Forest Niagara are nearly electronically identical to this set.
See this article containing Teledial models. Also Teledial models of other brands are covered. In particular the nine 1936/37 Grunow models presented in "Radio Retailing", March 1937, are linked.

This is not a true 'teledial' as found in Grunow or Phonola, but rather 'Automatic Radio' as advertised in the Rogers brochure of the period.

A teledial, as the name implies, is like a rotary dial phone where you push in a button and turn the dial as the button is pushed.

The Rogers, Majestic, and Deforest Crosley models for 1938 have the Automatic Radio where the large metal dial is turned to a preset station with a wrist action; there is no push button to push in.

See brochure in pics of my Rogers 12/146

Net weight (2.2 lb = 1 kg) 86 lb (86 lb 0 oz) / 39.044 kg

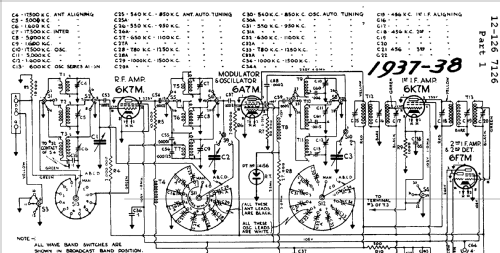

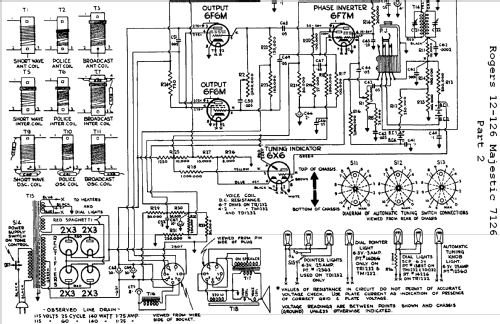

Circuit diagram reference Radio College of Canada
Mentioned in RCC Rogers-Majestic section page 37 & 39
