• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160158

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6J8M 6K7M 75M 41M 6X6 2X3 2X3

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

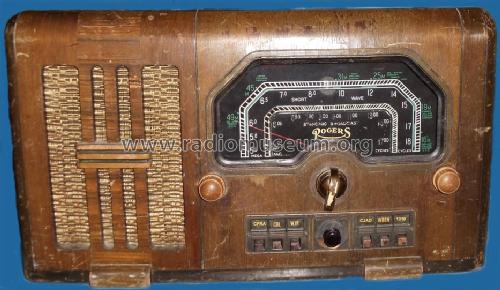

• Model: Rogers 13-71 Ch= 8R723 - Rogers-Majestic, Standard

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 20.25 x 11.5 x 12 inch / 514 x 292 x 305 mm

• Notes

• This set has an automatic tuning mechanism. The 6X6 is a tuning indicator tube. The Rogers 13-76, Majestic 871, 876, De Forest Elgar and Bizet are electronically identical.

  115 Volt 25/60 Hz, 55 Watts. Broadcast: 530 - 1790 kHz, Shortwave: 5.5 - 18 MHz.

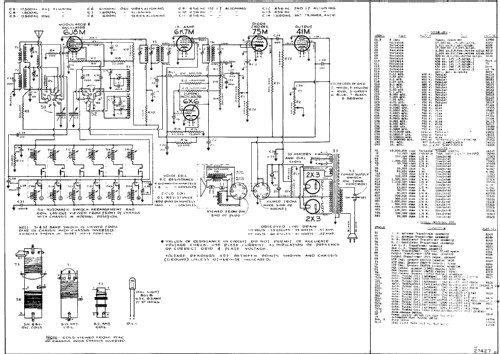

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 43 & 44

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
