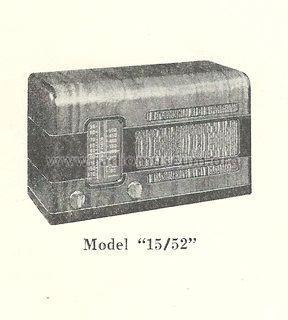

Rogers 15/52 Ch= 10R512

Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175071
    • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 25 to 60 Hz, 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.5 inch = 14 cm
  • Power out
  • 1.25 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rogers 15/52 Ch= 10R512 - Rogers-Majestic, Standard
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 13.625 x 7.5 x 5.625 inch / 346 x 191 x 143 mm
  • Notes

  • This model is electronically identical to the Majestic 41/52 and the De Forest Caledonia.

    Can operate on 25 Hz @ 34 Watts or 60 Hz @ 32 Watts 117V ac

  • Net weight (2.2 lb = 1 kg)
  • 10 lb (10 lb 0 oz) / 4.540 kg
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section, pages 72 & Cross-Reference
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
