• Year
  • 1928/1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157475
    • alternative name: Rogers Radio Tube

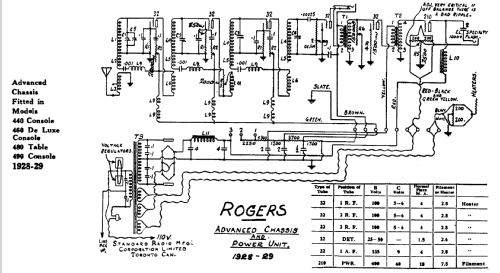

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rogers 460 De Luxe Ch= Advanced - Rogers-Majestic, Standard
  • Shape
  • Console with any shape - in general
  • Notes
  • Early AC heated tubes with overhead filament terminals. The heater, B and C voltages are provided by a separate chassis power source housing the tube rectifier.

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers section page 5
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
