• Year
  • 1932/1933 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 157503
    • alternative name: Rogers Radio Tube

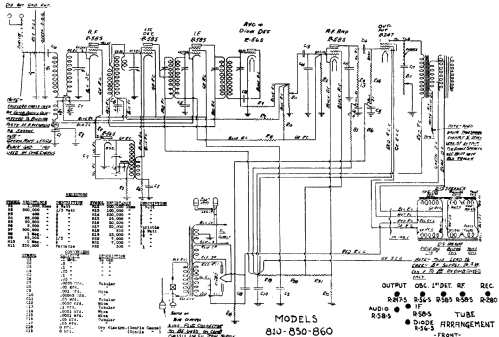

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Rogers 860 Ch= 861 - Rogers-Majestic, Standard
  • Notes
  • This set is capable of powering short wave and phonograph units. Rogers 810 and 850 are electronically identical to this model.
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers section page 13
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
